Pad printing machine special supplies accessories sales season

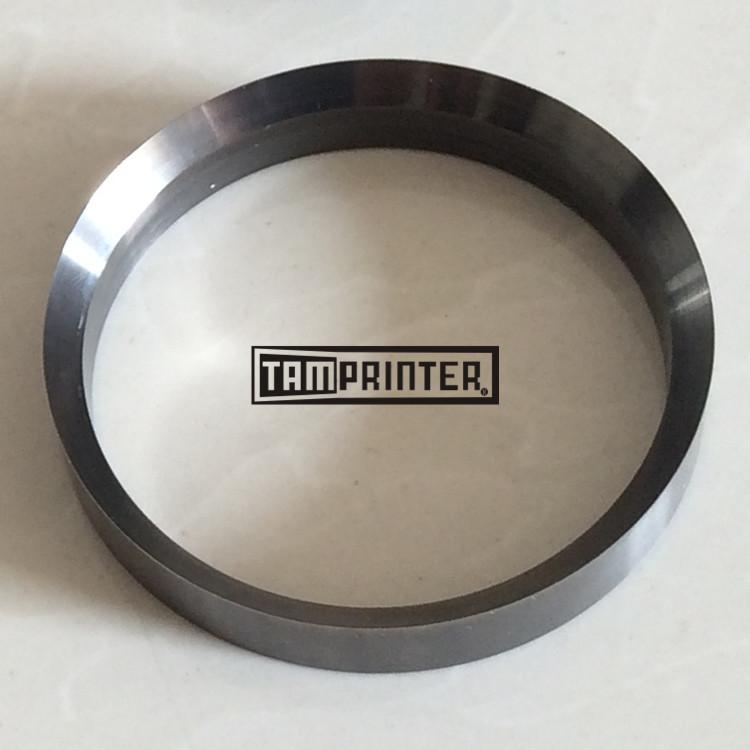

Type:Doctor Blade Use:For Tampo, Kent, Wutung, Chungfou, Winon, Everbright, etc Printing Type:Inkcup pad printer Product name:tungsten carbide rings for ink cup pad printing machine material:carbide (tungsten)
Buy printing machine tungsten steel ring classic steps:

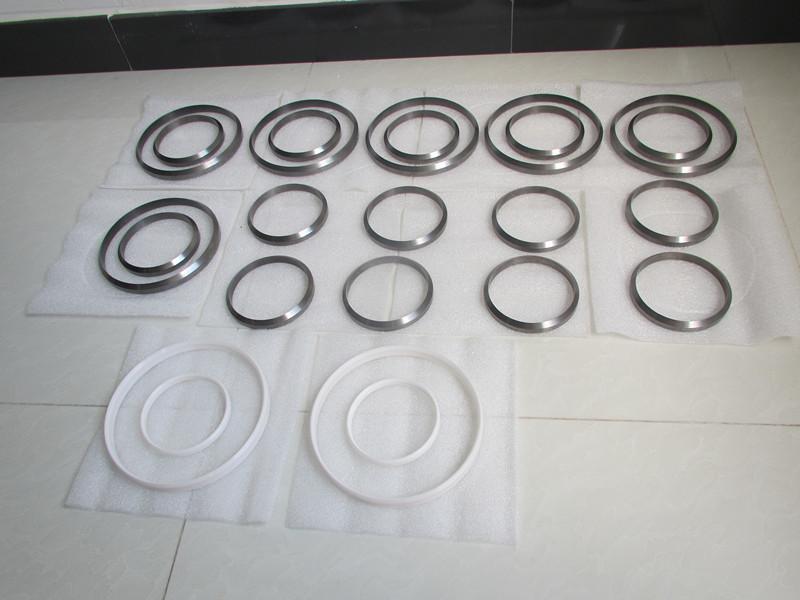

1, the first election tungsten steel ring size: diameter * diameter * high (in order to avoid buying back not installed, be sure to confirm and then send a sample to me that is not wrong)
Φ36.5xΦ42.5x6mm
Φ45*Φ40*12mm
Φ43*Φ37*10mm
Φ52*Φ60*12mm
Φ55*Φ45*12mm
Φ64*Φ56*12.2mm
Φ65*Φ60*5mm
Φ65*Φ60*5.2mm
Φ70*Φ60*12mm
Φ78*Φ70*6mm
Φ80*Φ70*12mm
Φ70*Φ65*5.2mm
Φ90*Φ80*12mm
Φ90*Φ82*12mm
Φ94*Φ86*12mm
Φ90*Φ85*8mm
Φ100*Φ90*12mm
Φ110*Φ100*12mm
Φ120*Φ110*12mm
Φ130*120*12mm
Φ140*Φ130*12mm
Φ150*Φ140*12mm
Φ199*Φ189*12mm
Φ200*Φ190*12mm
Φ201*Φ189*16mm
Φ250*Φ240*16mm
2, and then choose to print tungsten steel ring blade shape
Reference to the following table, the conventional is 1,2,3,4 models, you want to carve is not our circle ah
3, if there are special requirements to remember attached to the drawings ah, such as the side of your company designated mark, or tell me the tolerance requirements, this is very few people suggested that as long as can be used.
Note: special specifications can be customized, different specifications are not the same price, please call me and then buy ah, thank you!
4, would like to know how to see the quality of it?
Here broke the most core of the core test processing technology indicators,
The tip is 0.1mm width plane, grinded same the mirror. in this narrow mirror , you find the ceiling of the lamp, rotating and rotation, found a circle of continuous size, the line is even and continuous, good goods,
if the line is 0.1mm for a while 0.02mm, Congratulations, knife ring leak ink soon.
But tungsten steel ring material how to ultimately see the service life. Some say 80,000 times, 100 million times have, this with the use of a great relationship.
1), tungsten steel itself is fragile. Moreover, such a sharp knife-edge, ink containing particles, or not dust-free workshop in the dusty roadside workshop production, are easy to bad Oh.
2), tungsten steel ring collapse can also be grinding, ceramic ring gap repair difficult, few people take this job, because cheap.
You wholesalers, procurement leaders concerned about the quality of tungsten steel ring looked over, demanding Tamprinter factory is also very diligent Oh Grinding tungsten steel on a lot of cylindrical grinding + plane grinding can do, not mysterious.
5, tungsten steel sub-acid wear-resistant, alkali-resistant wear-resistant, heat-resistant, and my ink has not bought it, ye election ah? Asked the ink factory.
Features:
Scraping ink clean,
Long-term use without oil, oil spills, corrosion resistance, wear resistance, the use of long life,
On the ink color and efficacy without any impact and adverse reactions.
Wear-resistant, corrosion-resistant, high temperature, life is the ceramic ring knife at least three times to seven times longer
(Carbide tungsten steel ring knife), for the majority of printing within the manufacturers to provide a variety of models specifications pure alloy tungsten steel oil (stainless steel tungsten steel ring knife) Cups scraping knife, high quality to see the tip of the knife, widely used in various brands of oil cup printing machine scraping system, a large number of supply to the cylinder pad printer manufacturers, and exports to Southeast Asia, the European market, won the customer Love and praise.
